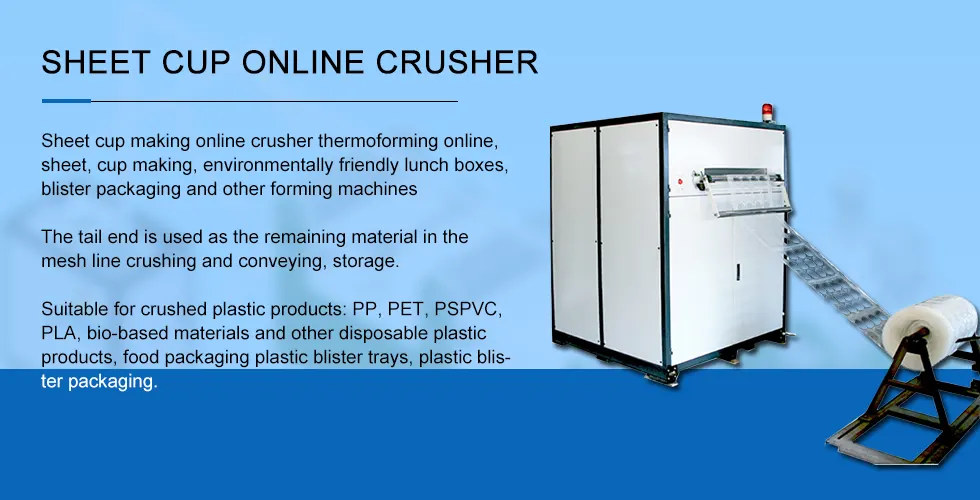

Sheet Cup Online Crusher

Gaoxin factory's Sheet Cup Online Crusher is specifically designed to process residual web material generated on thermoforming lines. This web material originates from the leftover scraps from thermoforming processes such as sheet materials, cups, eco-friendly lunch boxes, and blister packaging.

Send Inquiry

Product Description

GAOXIN, a professional sheet cup online crusher supplier, delivers high-quality equipment for efficient plastic scrap crushing and recycling. The Sheet Cup Online Crusher crushes this scrap material on-site, then efficiently transports the crushed material to a designated location for centralized storage. This integrated process, combining crushing, conveying, and storage, effectively simplifies the waste recovery process in the thermoforming process.

FEATURES

01Break tradition smash

This machine realizes immediate online crushing and conveying.
Material storage is integrated, saving manpower and avoiding raw material contamination

02Customizable duplex position

One crusher can crush two hosts to produce of waste, saving costs

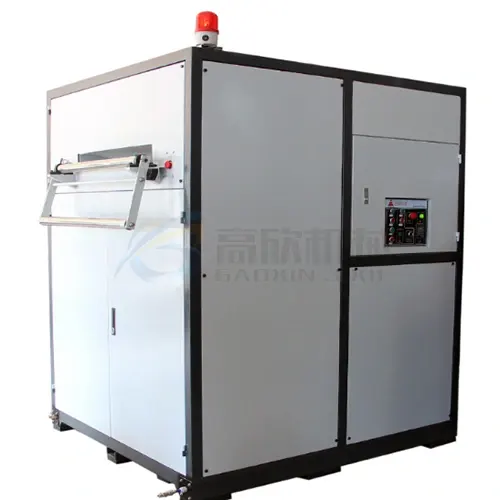

Fully enclosed silent03
design

The fuselage adopts fully enclosed sound insulation treatment
Built-in sound insulation material, minimal noise

Frequency04

The frequency converter adjusts the speed to keep the crusher speed consistent with the host discharge line speed insulation for hopper

Accessory description

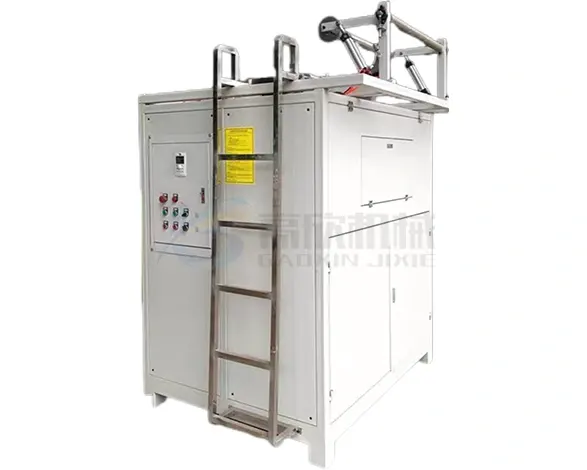

Duplex

Double-station automatic clamping, no manual adjustment is required when the material thickness changes
Enter the host smoothly

The crushed thin film fragments are forced to be transported to the large screw of the main machine to prevent the thin film fragments from bridging and unable to enter the main machine

Long life

All copper wire motor, long life and durable
Reduce noise

Soundproof outer box to reduce media noise and avoid dust

Electrical control

Use Siemens or Taian Electric to ensure stable operation of the equipment
High hardness cutting tools

High hardness tool material, better wear resistance and higher production efficiency

Technical Parameters

Specifications：
Model	unit	GXGR650	GXGR800	GXGR1000	GXGR1200
Crushing chamber	(mm)	650*250	420*280	480*330	660*350
Traction motor	（KW)	0.75	0.75	1.5	1.5
Crushing power	（KW)	11	15	22	37
Feeding motor power		2.2	3.75	4	5.5
Traction speed	(m/min)	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）
Maximum width	（MM)	640	790	980	1180
maximum thickness	（MM)	2	4	6	9
Crushingcapacity	(kg/h)	200～300	300～400	400～600	600～800
Blade number	PCS	2	4	4	4
Blade number	PCS	6	6	6	9
Operating noise	(db）	80-90	80-90	80-90	80-90
Outine dimensions	(L×W×H MM)	90016002000	110018002000	110020002000	150022002000
Net weight	(kg)	1100	2000	2500	3000

Use with automation

Traction automatic feeding, can be combined with online automatic crushing and recycling, automatic screw discharging, cyclone automatic storage, high efficiency and energy saving

Online automatic recycling

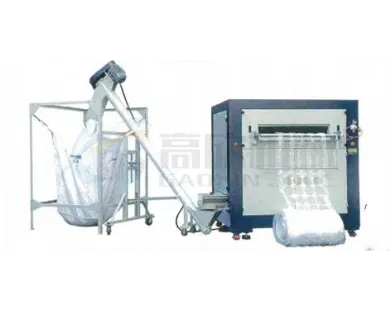

Screw discharging + ton bag storage

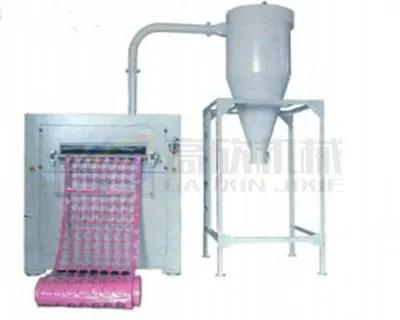

Cyclone discharging + automatic storage
